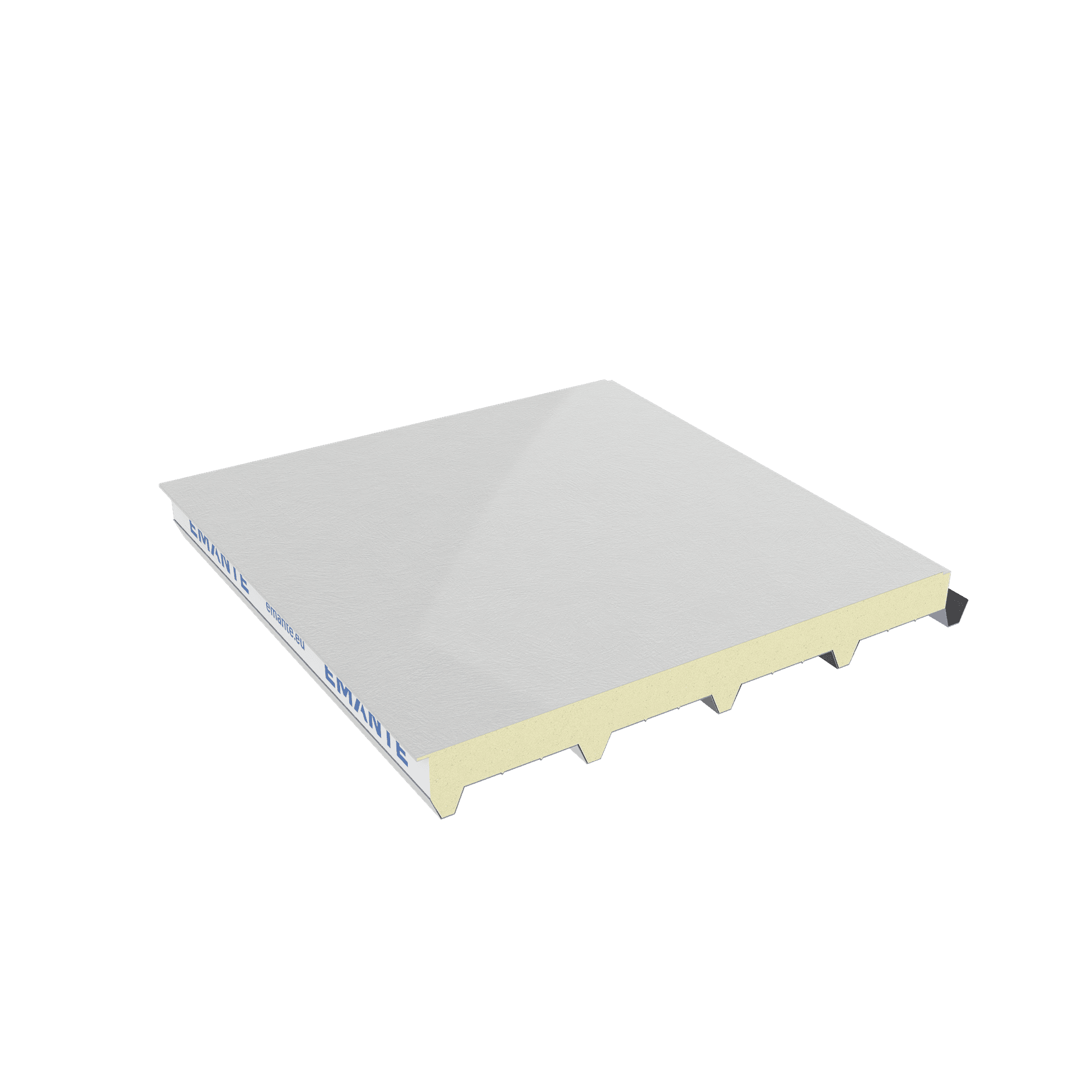

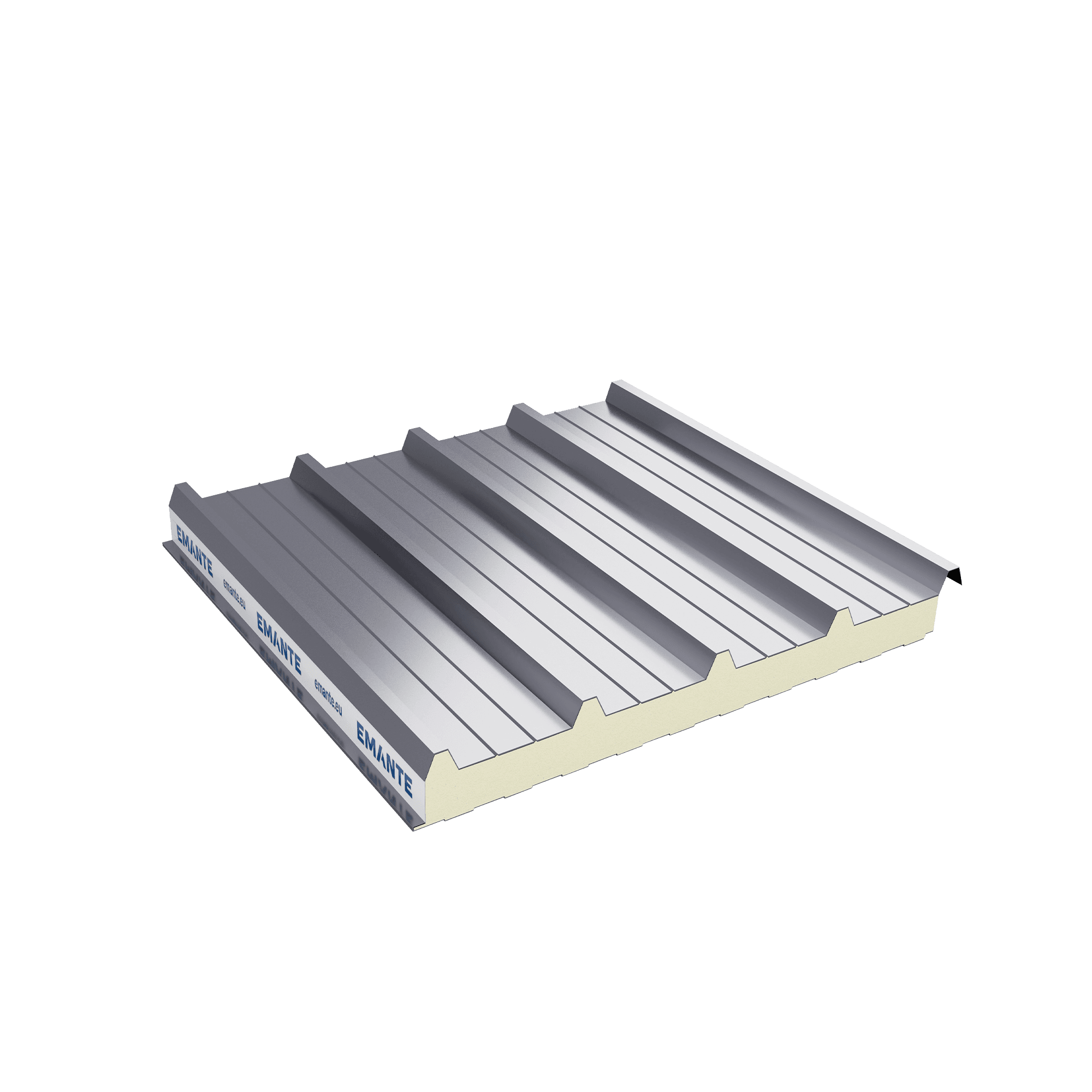

Insulated roof sandwich panel made of two profiled metal sheets with rigid PUR or PIR foam core. Self-supporting solution for industrial and modular roofs. Designed for effective water drainage and thermal insulation. Quick to install, durable, and low maintenance. Produced according to EN 14509.
RAL 9002
RAL 9006
RAL 7015
RAL 8019
RAL 6005
RAL 3009
For more details check our catalog or
Static Properties
Single support conditions
Thickness (mm)
Weight
Uniform distributed load
Span L [m]
1.50
2.00
3.00
2.50
3.50
30
→
1.30
1.00
0.80
0.55
0.40
40
→
1.60
1.35
1.00
0.70
0.50
50
→
1.75
1.50
1.25
0.80
0.55
60
→
1.85
1.65
1.30
1.20
0.80
80
→
1.95
1.70
1.50
1.30
1.20
100
→
2.25
1.75
1.60
1.45
1.05
120
→
3.20
2.60
2.20
1.80
1.20
150
3.25
2.65
2.25
1.90
1.25
Multiple support conditions
Thickness
Weight
Uniform distributed load [kN/m²]
Span L [m]
1.50
2.00
2.50
3.00
3.50
4.00
5.00
30
→
1.30
1.00
0.80
0.65
0.50
0.33
0.25
40
→
1.60
1.35
1.00
0.74
0.60
0.43
0.34
50
→
1.75
1.50
1.30
1.25
0.90
0.80
0.70
60
→
1.85
1.65
1.30
1.20
0.90
0.80
0.70
80
→
1.95
1.70
1.50
1.35
1.00
0.90
0.85
100
→
2.25
1.75
1.60
1.55
1.45
1.15
1.10
120
→
3.20
2.60
2.20
1.80
1.50
1.35
1.20
150
3.25
2.65
2.25
2.00
1.55
1.45
1.32
Thermal Properties
| Thickness | mm | 30 | 40 | 50 | 60 | 80 | 100 | 120 |
|---|---|---|---|---|---|---|---|---|
| Thermal Transmission, U (EN 14509 A.10) | W/m²K | 0.71 | 0.52 | 0.42 | 0.35 | 0.26 | 0.20 | 0.16 |
