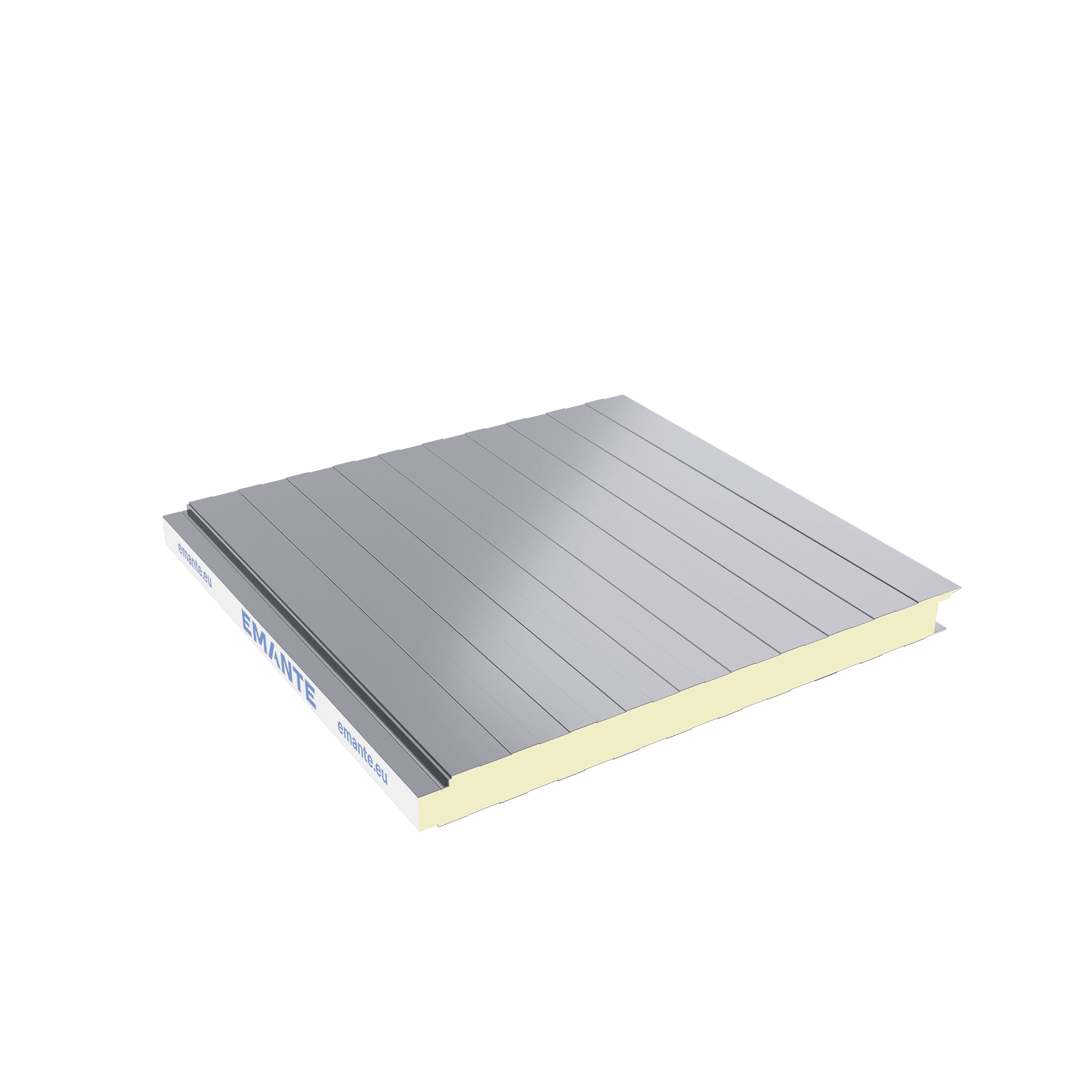

E-Wall

Insulated sandwich panel made of two profiled metal sheets filled with rigid PUR or PIR foam. Self-supporting solution for walls or façades, ideal for prefabricated and modular buildings. Available with flat or profiled outer surface. Versatile, easy to install and maintain. Produced according to EN 14509.

Thickness (mm): 30-120
Width (mm): 1000
Length (m): 2,50 - 17,00

RAL 9010

RAL 9001

RAL 9002

RAL 9006

RAL 9007

RAL 8015

RAL 8019

RAL 2002

RAL 3020

RAL 6021

RAL 6005

RAL 5010

3D Wood

For more details check our catalog or

Technical information

Static Properties

Single support conditions

Thickness (mm)

Weight

Uniform distributed load
Span L [m]

1.50

2.00

3.00

2.50

3.50

→

1.30

1.00

0.80

0.55

0.40

→

1.60

1.35

1.00

0.70

0.50

→

1.75

1.50

1.25

0.80

0.55

→

1.85

1.65

1.30

1.20

0.80

→

1.95

1.70

1.50

1.30

1.20

100

→

2.25

1.75

1.60

1.45

1.05

120

→

3.20

2.60

2.20

1.80

1.20

150

3.25

2.65

2.25

1.90

1.25

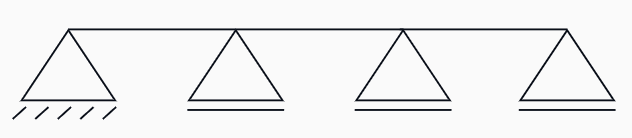

Multiple support conditions

Thickness

Weight

Uniform distributed load [kN/m²]
Span L [m]

1.50

2.00

2.50

3.00

3.50

4.00

5.00

→

1.30

1.00

0.80

0.65

0.50

0.33

0.25

→

1.60

1.35

1.00

0.74

0.60

0.43

0.34

→

1.75

1.50

1.30

1.25

0.90

0.80

0.70

→

1.85

1.65

1.30

1.20

0.90

0.80

0.70

→

1.95

1.70

1.50

1.35

1.00

0.90

0.85

100

→

2.25

1.75

1.60

1.55

1.45

1.15

1.10

120

→

3.20

2.60

2.20

1.80

1.50

1.35

1.20

150

3.25

2.65

2.25

2.00

1.55

1.45

1.32

Thickness	mm	30	40	50	60	80	100	120
Thermal Transmission, U (EN 14509 A.10)	W/m²K	0.71	0.52	0.42	0.35	0.26	0.20	0.16

Thickness

100

120

Thermal Transmission, U (EN 14509 A.10)

W/m²K

0.71

0.52

0.42

0.35

0.26

0.20

0.16

E-Wall

E-Wall

Profiles sandwich panel

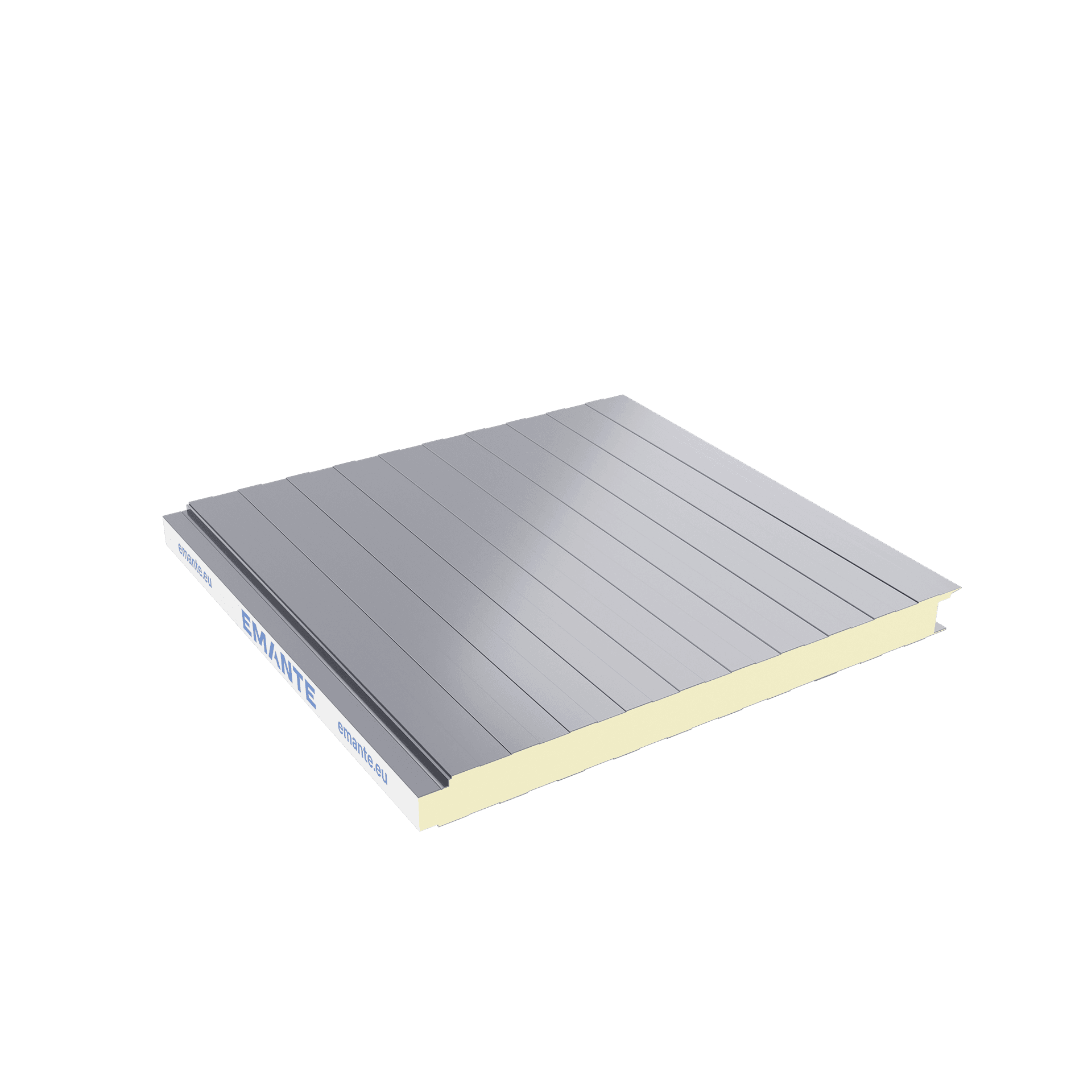

Standard sandwich panel

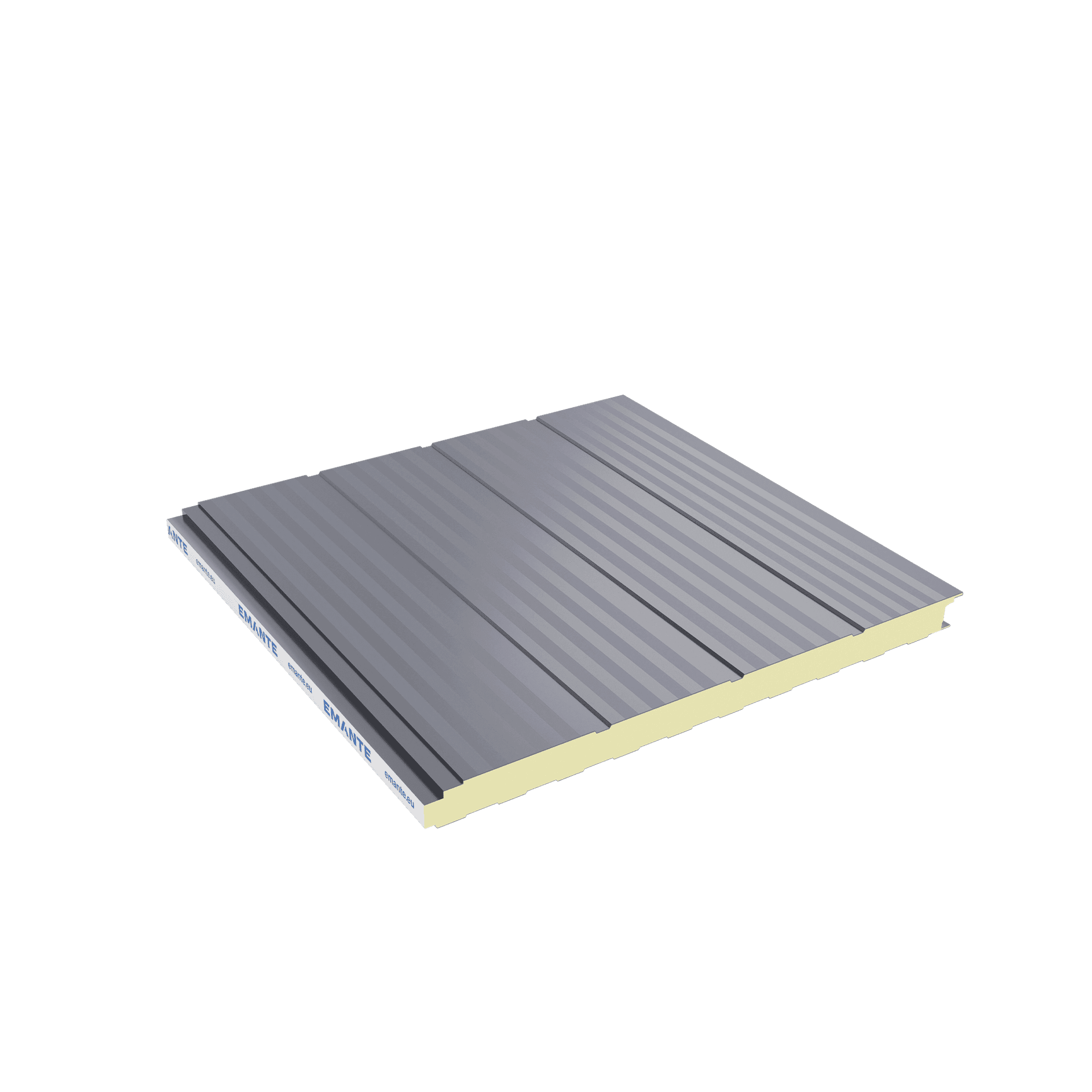

Special sandwich panel

Microline sandwich panel

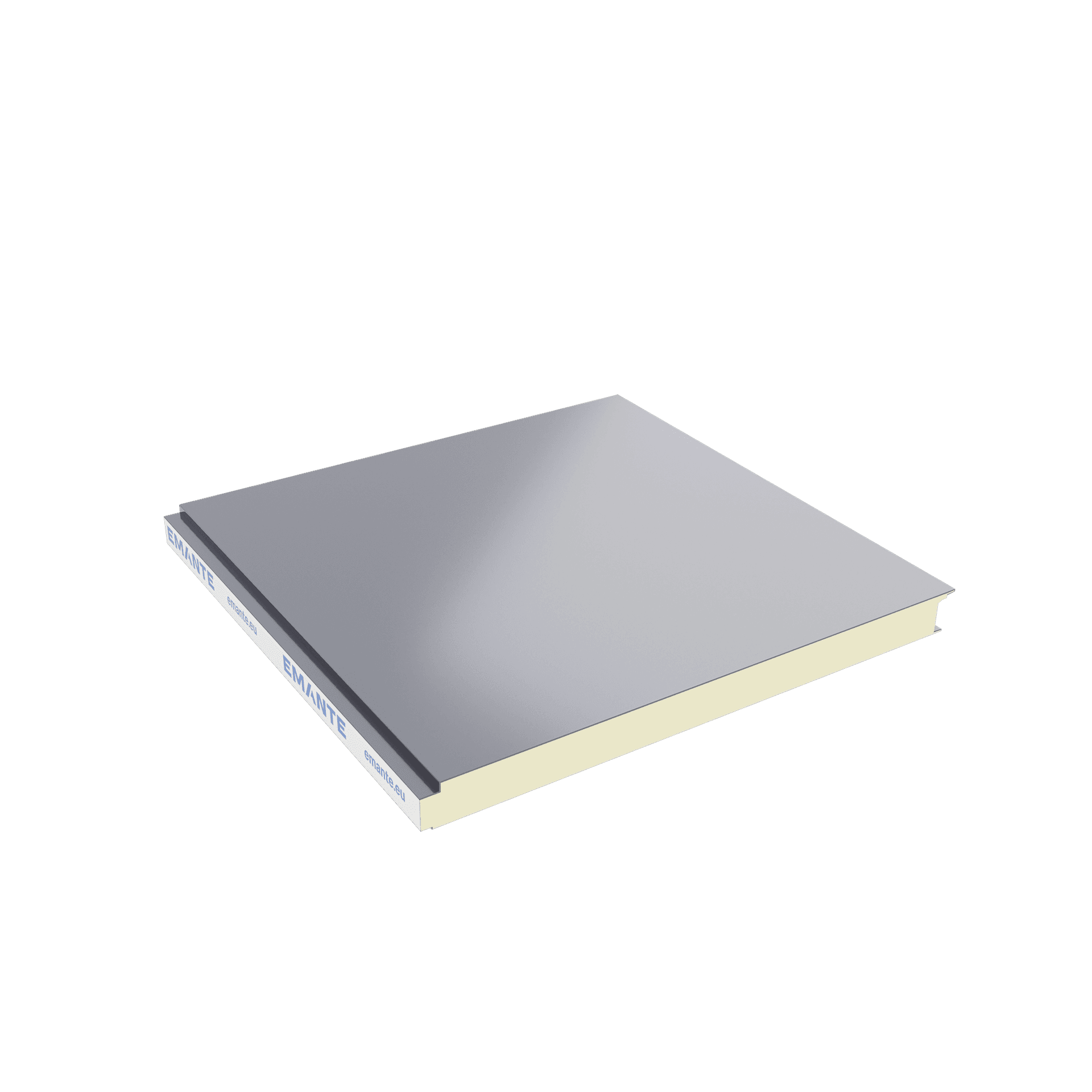

Flat sandwich panel
